Proposal 137092 Review | Lorimer
- CO.DELTA △
VOTE: YES
TLDR: Replaces a cordoned node (referencing clear public declaration from the relevant NP) with an unassigned node. Decentralisation is significantly reduced (increasing max nodes per country from 1 to 2 within this subnet), however this is still within the thresholds imposed by the IC Target Topology. See Decentralisation Stats below for more detail.
Note that the outlook regarding countries is the same regardless of whether tsbrx is in Switzerland or Germany.
Country Discrepancies (2)
Decentralisation Stats
Subnet node distance stats (distance between any 2 nodes in the subnet) →
| Smallest Distance | Average Distance | Largest Distance | |
|---|---|---|---|
| EXISTING | 114.628 km | 1326.85 km | 3311.311 km |
| PROPOSED | 114.628 km | 1254.895 km (-5.4%) | 3311.311 km |
This proposal slightly reduces decentralisation, considered purely in terms of geographic distance (and therefore there’s a slight theoretical reduction in localised disaster resilience).
Subnet characteristic counts →
| Continents | Countries | Data Centers | Owners | Node Providers | Node Operator | |
|---|---|---|---|---|---|---|
| EXISTING | 1 | 13 | 13 | 13 | 13 | 13 |
| PROPOSED | 1 | 12 (-8.3%) | 13 | 13 | 13 | 13 |
This proposal slightly reduces decentralisation in terms of jurisdiction diversity.
Largest number of nodes with the same characteristic (e.g. continent, country, data center, etc.) →
| Continent | Country | Data Center | Owner | Node Provider | Node Operator | |
|---|---|---|---|---|---|---|
| EXISTING | 13 | 1 | 1 | 1 | 1 | 1 |
| PROPOSED | 13 | 2 (+100%) | 1 | 1 | 1 | 1 |
See here for acceptable limits → Motion 135700

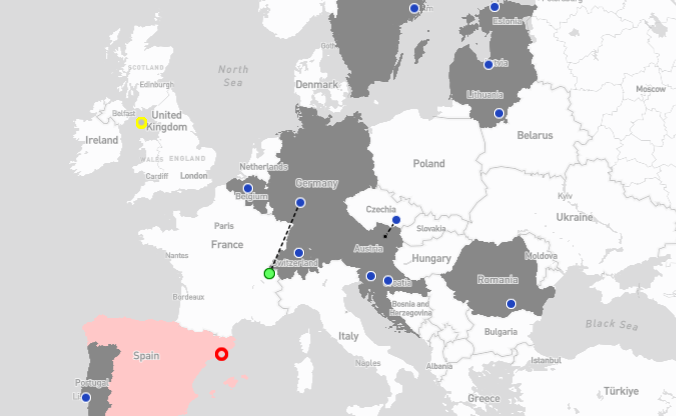

The above subnet information is illustrated below, followed by a node reference table:
Map Description
-
Red marker represents a removed node (transparent center for overlap visibility)
-
Green marker represents an added node
-
Blue marker represents an unchanged node
-
Highlighted patches represent the country the above nodes sit within (red if the country is removed, green if added, otherwise grey)
-
Light grey markers with yellow borders are examples of unassigned nodes that would be viable candidates for joining the subnet according to formal decentralisation coefficients (so this proposal can be viewed in the context of alternative solutions that are not being used)
-
Black dotted line connects to a small black marker that shows where the IP address indicates the node is located (according to
ipinfo.io). This is only displayed if it conflicts with where IC records indicate the node is located. See Country Discrepancies section above for more info.
Node Changes
| Action | Node | Status | Continent | Country | Data Center | Owner | Node Provider | Node Operator | |
|---|---|---|---|---|---|---|---|---|---|
| Remove |  |
||||||||
| Add | tsbrx | UNASSIGNED | |
Europe | Switzerland | Geneva 2 (ge2) | SafeHost | Extragone SA | 5atxd |
Other Nodes
| Node | Status | Continent | Country | Data Center | Owner | Node Provider | Node Operator | |
|---|---|---|---|---|---|---|---|---|
| xzpf4 | UP | |
Europe | Belgium | Brussels 2 (br2) | AtlasEdge | Allusion | oorkg |
| w3phu | UP | |
Europe | Switzerland | Zurich 3 (zh3) | Nine.Ch | Tomahawk.vc | anodw |
| 3yok3 | UP | |
Europe | Czechia | South Moravian Region 1 (bn1) | Master Internet | Lukas Helebrandt | zc635 |
| dzol4 | UP | |
Europe | Germany | Frankfurt 2 (fr2) | Equinix | Virtual Hive Ltd | 3nu7r |
| 35ddr | UP | |
Europe | Estonia | Tallinn 2 (ta2) | Telia DC | Ivanov Oleksandr | kcyob |
| c4xi6 | UP | |
Europe | Croatia | Zagreb 1 (zg1) | Anonstake | Anonstake | 3sm7v |
| ldqxr | UP | |
Europe | Lithuania | Vilnius 2 (vl2) | Data Inn | George Bassadone | inluf |
| yf2ct | UP | |
Europe | Latvia | Riga 1 (rg1) | DEAC | MB Patrankos šūvis | jptla |
| 7exbb | UP | |
Europe | Portugal | Barreiro 1 (ba1) | Online | Bohatyrov Volodymyr | 2ibzn |
| foa3b | UP | |
Europe | Romania | Bucharest (bu1) | M247 | Iancu Aurel | c5ssg |
| a3xcb | UP | |
Europe | Sweden | Stockholm 1 (sh1) | Digital Realty | DFINITY Stiftung | lgp6d |
| popmv | UP | |
Europe | Slovenia | Ljubljana (lj1) | Posita.si | Fractal Labs AG | gl27f |
You may wish to follow the CO.DELTA known neuron if you found this analysis helpful.
CO.DELTA △
We’re a verifiably decentralised collective who review IC deltas (changes applied by NNS proposals). We follow a common code:
- Look: We observe the details and context of NNS proposals
- Test: We test and verify the claims made by those proposals
- Automate: We automate as much as possible by building increasingly sophisticated tools that streamline and strengthen the reviewal process.
Every vote cast by CO.DELTA is the result of consensus among diligent, skilled and experienced team members acting independently. The CO.DELTA neuron follows the vote of D-QUORUM on NNS topics that the CO.DELTA team does not handle directly. You can therefore follow CO.DELTA on all topics and rely on the highest quality of vote.
Note that this analysis involved data provided by the IC-API, which is not open source. I’m in the process of switching over to more verifiable sources of this sort of information for future proposal reviews. See here for related discussion.
